19% Off
On sale!
$7592.1300 $6168.6500
This item is eligible for free shipping!
*Continental US Only

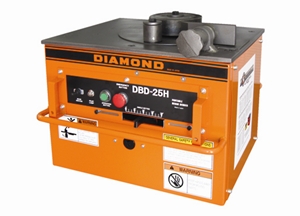

DBD-25H Rebar Bender Info SheetDBD-25H Rebar Bender Owners ManualDBD-25H Rebar Bender Roller ChartDBD-25H Rebar Bender Parts Breakdown
| Max. Rebar Size | #8 (1", 25 mm) Grade 60 | |
| Bending Angle | 0-180 degrees | |
| Bending Speed | 9 seconds (180 degrees) | |
| Power Supply | 115 V, 50/60 Hz (15 Amps) | |
| Tool Weight | 210 lbs (95 Kg) | |
| Dimensions (LxWxH) | 21" x 22.6" x 17.2" | |
| Warranty | 1 Year |
| DBD-25H REBAR BENDER ROLLER SELECTION CHART |
| Rebar Size | Center Roller | Moving Roller | # Bent at Once |
| #8 (1", 25 mm) | No. 7 | No. 1 | 1 piece |
| #7 (7/8", 22 mm) | No. 6 | No. 3 | 1 piece |
| #6 (3/4", 20 mm) | No. 4 | No. 5 | 2 pieces |
| #5 (5/8", 16 mm) | No. 3 | No. 6 | 2 pieces |
| #4 (1/2", 13 mm) | No. 2 | No. 8 | 3 pieces |
| #3 (3/8", 10 mm) | No. 1 | No. 9 | 4 pieces |
|
*** CAUTION *** Do not tilt this bender over 20 degrees or 90-weight oil may leak from the bath-type gear case
|
| Bending Roller Sizes for DBD-25H Only |
| Roller # (Part #) | Outside Diameter |
| No. 1 (#1BR4212500) | 2.54" (65 mm) |
| No. 2 (#1BR4212600) | 3.09" (79 mm) |
| No. 3 (#1BR4207000) | 3.63" (93 mm) |
| No. 4 (#1BR4207201) | 4.45" (114 mm) |
| No. 5 (#1BR4207101) | 4.45" (114 mm) |
| No. 6 (#1BR4207300) | 5.15" (132 mm) |
| No. 7 (#1BR4212800) | 5.97" (153 mm) |
| No. 8 (#1BR4209600) | 6.48" (166 mm) |
| No. 9 (#1BR4212900) | 7.14" (183 mm) |
