19% Off
On sale!
$11030.2400 $8962.0500
This item is eligible for free shipping!
*Continental US Only

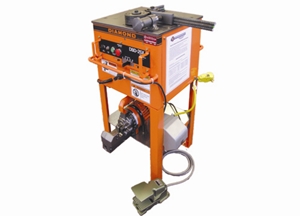

| Model No. | DBC-2525 | |
| Maximum Rebar Size | #7 (7/8", 22 mm) Grade 60 - Bending #8 (1", 25 mm) Grade 60 - Cutting |
|
| Bending Speed | 6 seconds (180 degrees) | |
| Cutting Speed | 5 seconds | |
| Power Supply | 115 V, 50/60 Hz 12 Amp - Bender, 12 Amp - Cutter |
|
| Total Weight | 274 lbs (124.5 kg) | |
| Dimensions (L x W x H) | 19.25" x 24.75" x 37.25" |
|
DBD-25X Rebar Bender Roller Selection Chart
Combination of Center Roller and Moving Roller according to the bar size:
|
|||
| Rebar Size |
Center
Roller #
|
Moving Roller # |
# of Bars At Once |
|
#7 (7/8", 22 mm)
|
No. 5 | No. 1 | 1 Piece |
| #6 (3/4", 20 mm) | No. 5 | No. 1 | 2 Pieces |
| #5 (5/8", 16 mm) | No. 4 | No. 3* | 2 Pieces |
| #4 (1/2", 13 mm) | No. 3 | No. 5 | 3 Pieces |
| #3 (3/8", 10 mm) | No. 1 | No. 6 | 4 Pieces |
* Use a second No. 4 Roller on moving roller to produce a complete 180 degree bend |
| ** CRSI (Concrete Reinforcing Steel Institute) recommends the finished inside bend diameter of center roller outside dimension for standard hooks be 6 times the bar diameter from #3 to #8, and 8 times the diameter for #9, #10, and #11 rebar. For #3, #4, and #5 stirrup hooks it's only 4 times the bar diameter. #6, #7, and #8 are again 6 times. |
| Bending Roller Sizes For DBD-25X Only |
| Roller # (Part #) | Outside Diameter |
| No. 1 (#1BR5140) | 1.95" (50 mm) |
| No. 2 (#1BR5142) | 2.73" (70 mm) |
| No. 3 (#1BR5143) | 3.12" (79 mm) |
| No. 4 (#1BR51441) | 3.75" (96 mm) |
| No. 5 (#1BR51451) | 4.75" (120 mm) |
| No. 6 (#1BR5146) | 6.13" (156 mm) |
